V3 16S 51.2V LiFePO₄ Vertical DIY Battery Box Kit with JK BMS V19 | 15kWh Solar Storage Assembly Solution

V3 16S 51.2V Vertical DIY Battery Box Kit for Solar Storage Integration

The V3 vertical DIY battery box kit is designed for installers, distributors, and energy storage integrators who need a flexible 51.2V LiFePO₄ battery assembly platform.

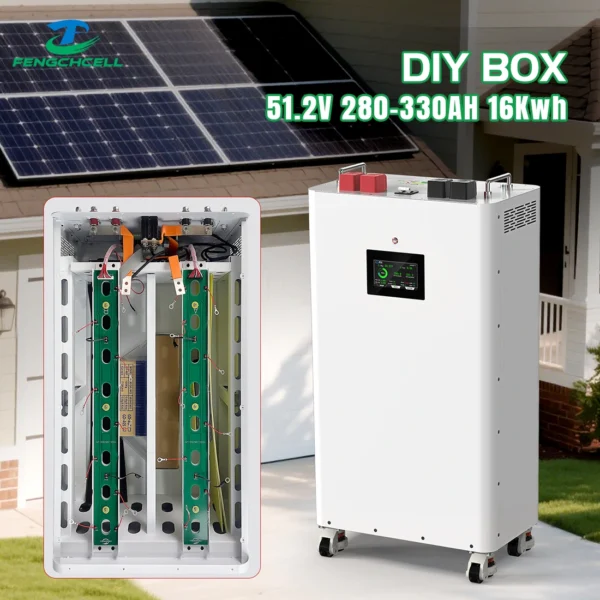

Built for 16S LiFePO₄ battery configurations, the V3 supports 16 × 280Ah or 300Ah prismatic cells, delivering approximately 14.3kWh to 15.4kWh capacity depending on the selected cells. The vertical tower design reduces installation footprint while providing a clean and organized structure for residential solar energy storage projects.

The enclosure is supplied with a pre-installed JK BMS V19 mounting system, protection components, communication interfaces, and complete assembly accessories, allowing partners to build customized battery systems efficiently.

Integrated Protection & Smart Battery Management

The V3 battery box kit includes essential components required for safe battery assembly:

• JK BMS V19 (PB Series) with CAN and RS485 communication
• 2A active balancing function
• Front-mounted air switch for battery isolation
• Built-in fire protection device

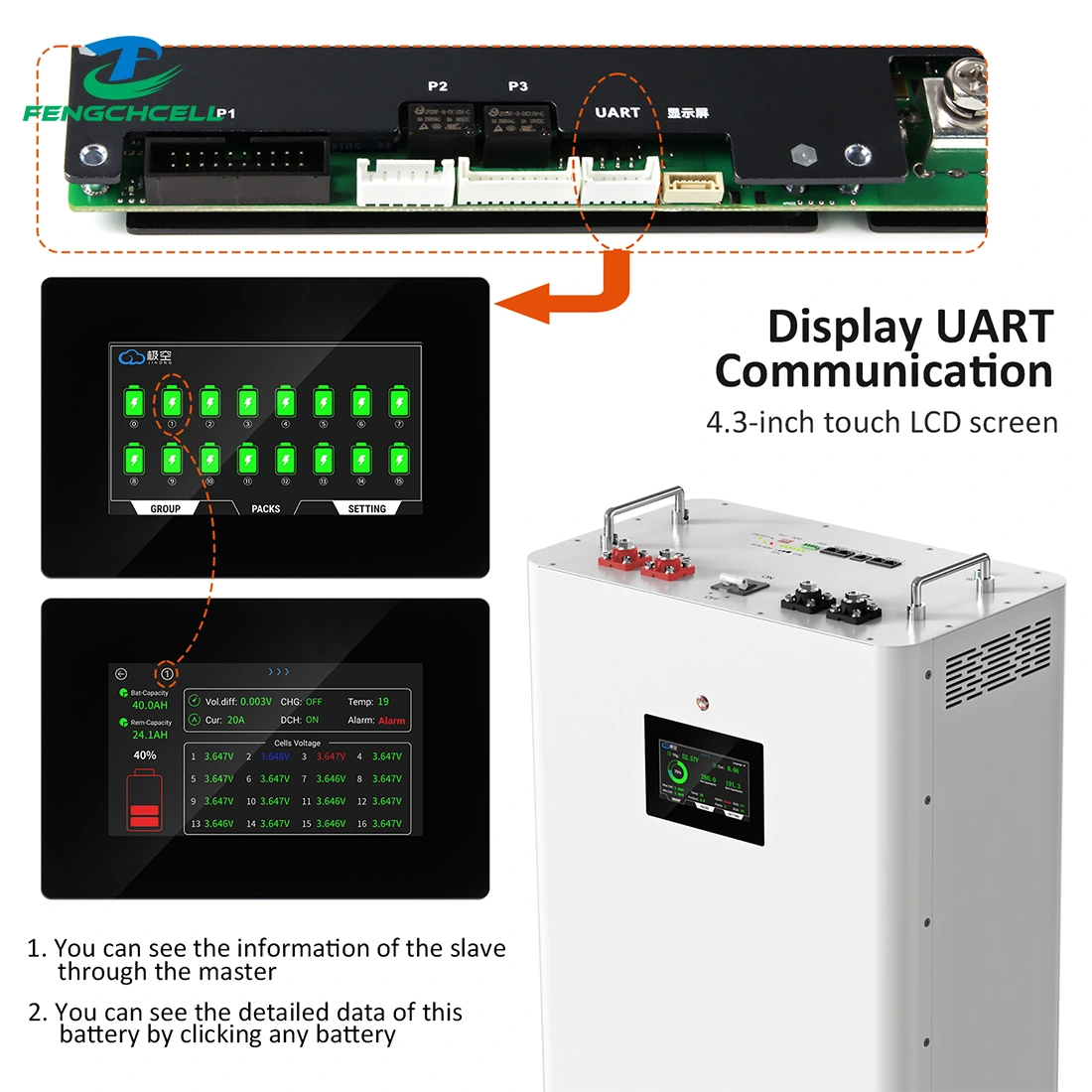

• LCD display for monitoring voltage, SOC, current, and temperature
• Bluetooth monitoring via JIKONG application

This integrated design helps reduce assembly time and simplifies system installation for professional battery builders.

Compatible with Major Inverter Brands

The V3 DIY battery box kit has been tested with various low-voltage hybrid inverter platforms, including:

• Deye
• Growatt
• Victron
• GoodWe
• SRNE
• MUST
• Luxpowertek
• MEGAREVO
• Pylontech

Additional inverter protocols such as Sofar, Solis, Easun, Anenji, and Voltronic can be supported after communication protocol confirmation.

Compatible Battery Cells

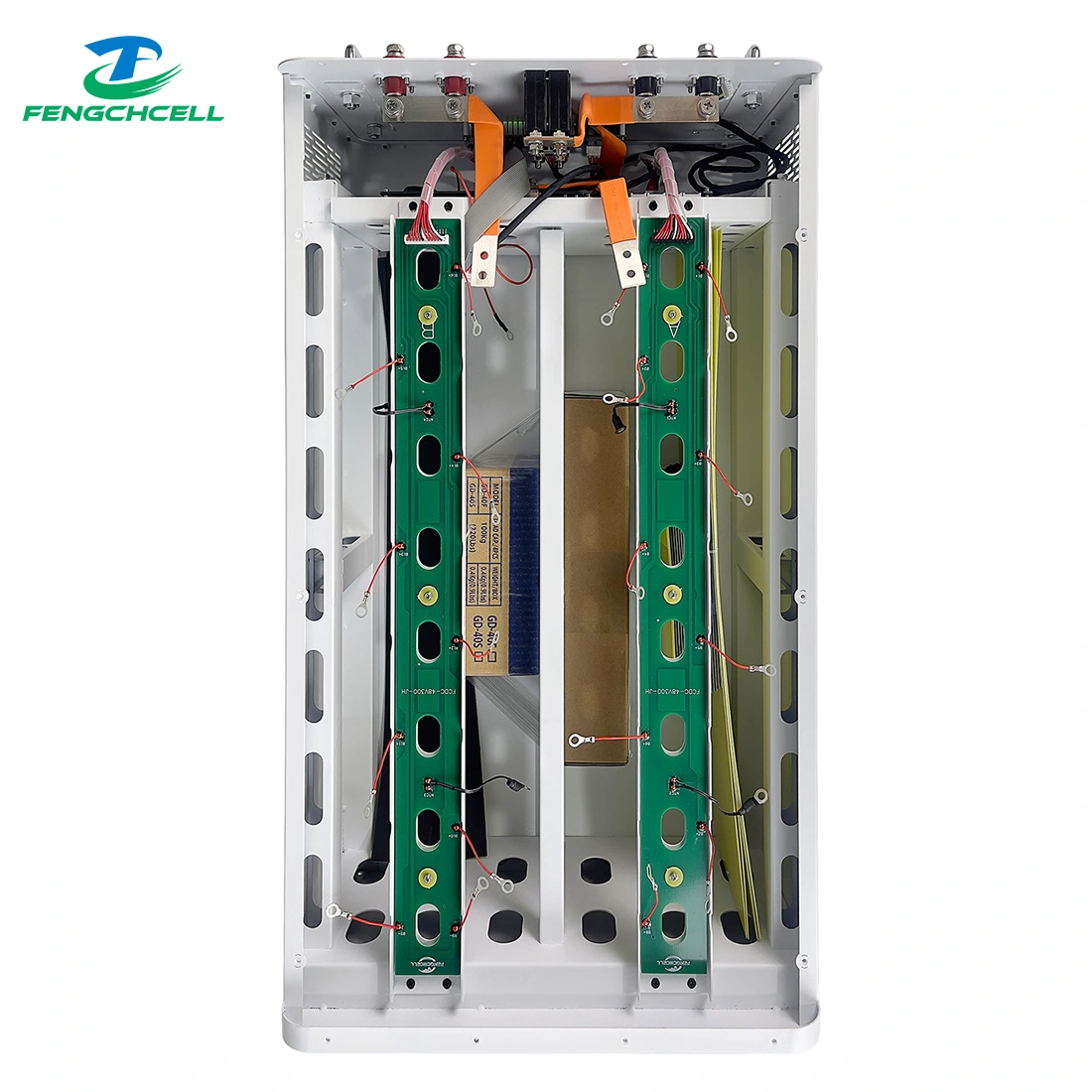

The V3 enclosure is designed for 16 prismatic LiFePO₄ cells (280Ah–300Ah) installed vertically.

For alternative cell brands or specifications, please provide the cell datasheet before ordering for compatibility confirmation.

Complete DIY Assembly Package

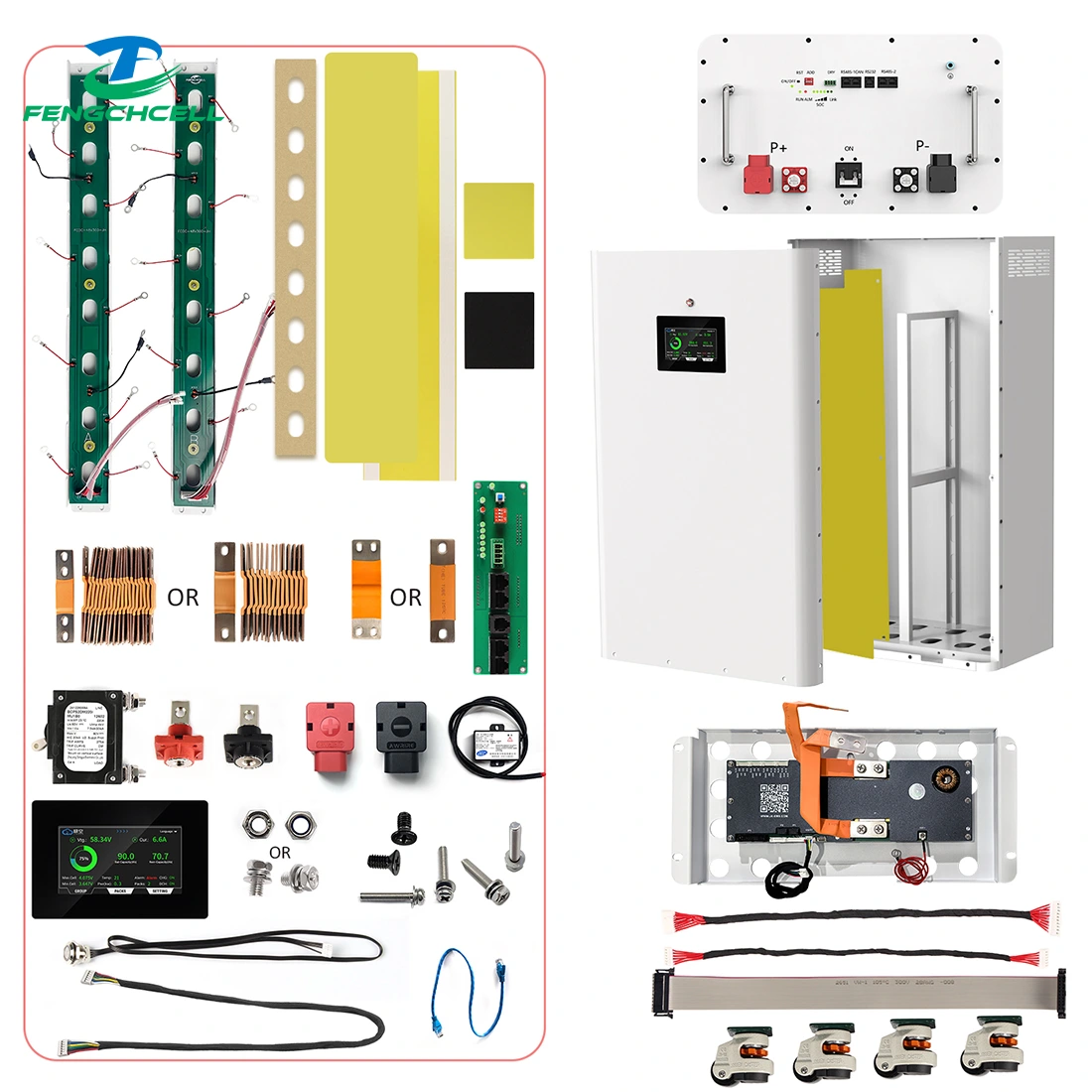

Each V3 kit includes:

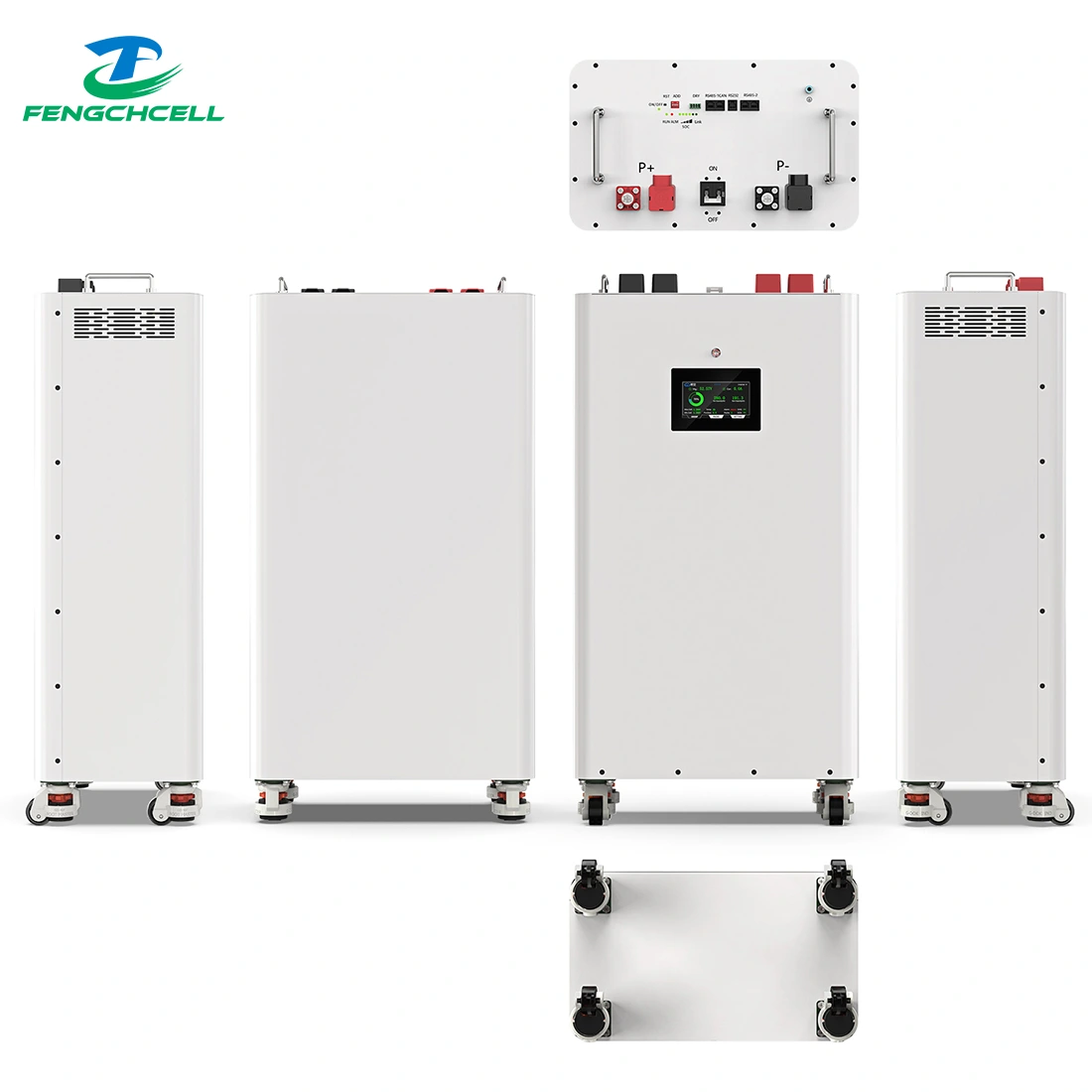

• Steel vertical tower enclosure
• JK V19 BMS mounting system
• LCD display and communication cable
• Air switch
• Fire protection device
• Cell insulation sheets and spacers
• Flexible busbars and terminal sets
• Voltage sensing harnesses with temperature sensors
• Communication cables
• Complete screw and hardware set
• Assembly manual

Battery cells are not included.

OEM & Bulk Supply Support

The V3 DIY battery box kit is suitable for installers, distributors, and energy storage solution providers developing customized LiFePO₄ battery systems.

We support OEM/ODM requirements, customized configurations, and bulk orders with technical assistance for battery assembly, BMS communication, and inverter compatibility.
